How do I replace the blade adapter on my Challenge XSZ40E Petrol Lawnmower

This guide explains how to replace the blade adapter (also known as the blade carrier or boss) on your petrol lawnmower.

Table of Contents

1. What Is the Blade Adapter?
2. Signs of a Damaged Blade Adapter
3. XSZ40E Specific Procedure
4. Final Checks

What Is the Blade Adapter?

The blade adapter is a cast alloy component located above the lawnmower blade.

It connects the blade to the crankshaft and plays a key role in transferring power from the engine to the cutting system.

Importantly, the blade adapter also acts as a protective component. If the blade strikes a hard object, the adapter is designed to absorb impact and prevent damage to the engine.

If it becomes damaged, the blade may become loose and the mower may vibrate excessively.

Signs of a Damaged Blade Adapter

A faulty blade adapter may cause:

• Excessive vibration during use
• Loose or unstable blade fitting
• Visible cracks or fractures in the casting
• Uneven cutting performance

If the adapter is damaged, it must be replaced before the mower is used again.

In some cases, similar symptoms may indicate crankshaft damage, which is more serious and may not be repairable.

XSZ40E Specific Procedure

On the XSZ40E model, the blade adapter consists of two parts:

• A disc pulley
• A T-shaped casting

These components interlock differently compared to standard models.

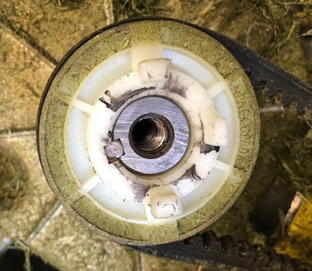

Step 1 – Position the Pulley

Lift the belt pulley up to the top of the crankshaft.

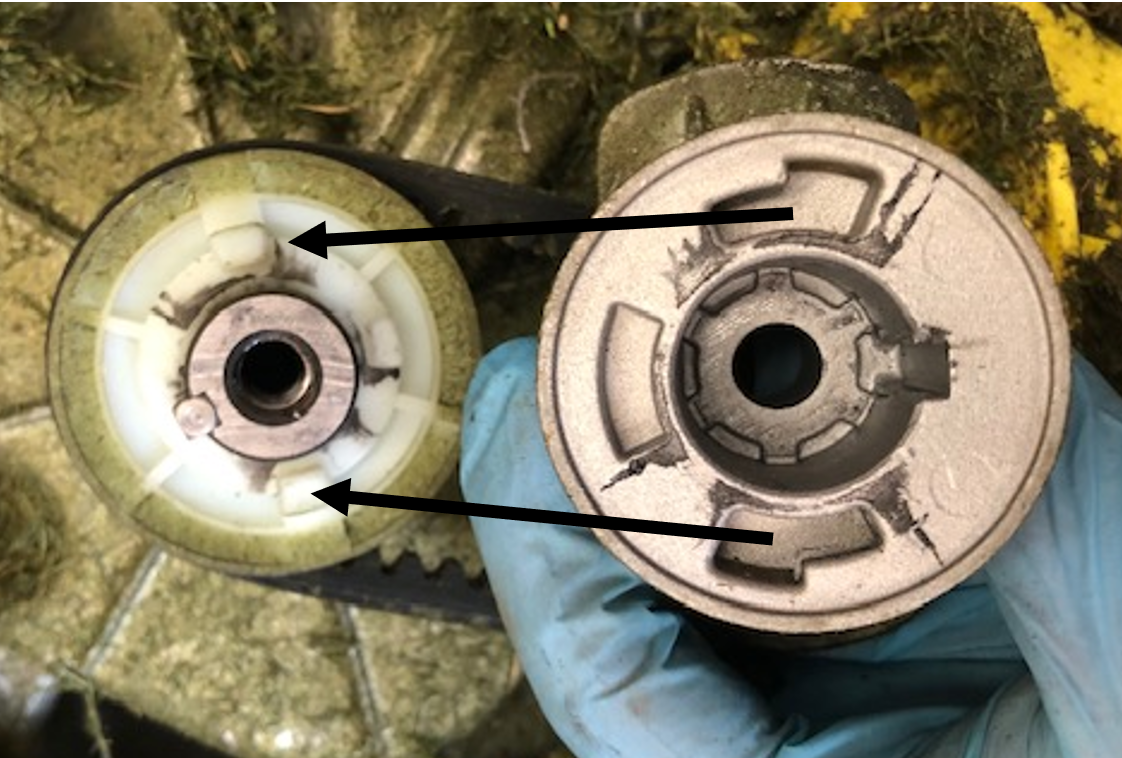

Step 2 – Align the Adapter

Insert the blade adapter into position, ensuring the two engagement clips are correctly aligned.

Rotate the assembly anti-clockwise to lock it into the belt pulley.

Step 3 – Secure the Assembly

Push the blade adapter and pulley assembly downward until fully engaged.

Step 4 – Fit the Blade

• Attach the blade to the adapter
• Tighten the blade bolt securely
• Confirm correct alignment and tightness

Final Checks

Before using the mower:

• Check that the blade is secure
• Ensure there is no wobble or movement
• Confirm the drive belt is correctly seated (if applicable)
• Verify smooth rotation by turning the blade by hand (with spark plug disconnected)
